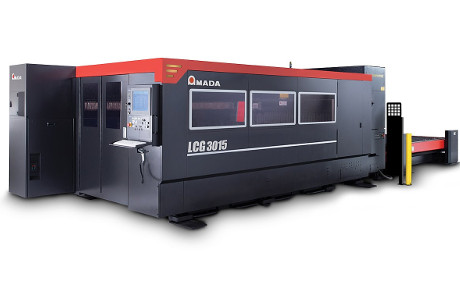

AMADA LCG 3015

LCG featuresinclude:
- AMADA/Fanuc 3500i-C resonatorspecificallydesignedforthe LCG laser, achievingthesamecutquality as a higher-powered CO2 machine
- Includesanenclosurethatsurroundstheentirecutting area ofthemachinewithaccessfor part removal
- Utilizes a helicalrack and pinion drive systemforboththe X and Y axis - allowingforhigheracceleration and faster rapid traverse speedscompared to traditionalrack and pinioinsystems
- Sectionalizeddustcollectionsystemthatopensonlyductsdirectlybeneaththecuttingheadforfumeextraction, improvingdustcollection
- AMNC/PC controlwithtouch-screen and intuitivegraphics display thateasilyswivelsforoperatorviewing
- High-speed cuttingheadwithincreasedsensing speed, lensburndetection, auto-focuscontrol and auto nozzlecleaning and headcalibration
Specification | LCG 3015 |
---|---|
Travel Method | Materialremainsstationary. X, Y and Z-axis movement |
EUROM | EK 3000 |
Drive Method | X and Y-axis helicalrack and pinion. Z-axis ballscrew |
Axis TravelCuttingHead | 121 "x 61" x 3,93 " |
Maximum Thickness | 3/4" mildsteel, 3/8" stainlesssteel, 5/16" aluminum |
Maximum WorkWeight | 2000 lbs.. |
Rapid Traverse | X, Y = 4,724"/min. simultaneous = 6,693"/min. Z = 4,724"/min. |
Repeatability | ± 0,0002 " |
Z-Axis | High-speed capacitivesensing |
CNC | AMNC-PC-OS: Windows Embedded |
AssistGasControl | Automaticselect |
Resonator | AF3500i-C |
